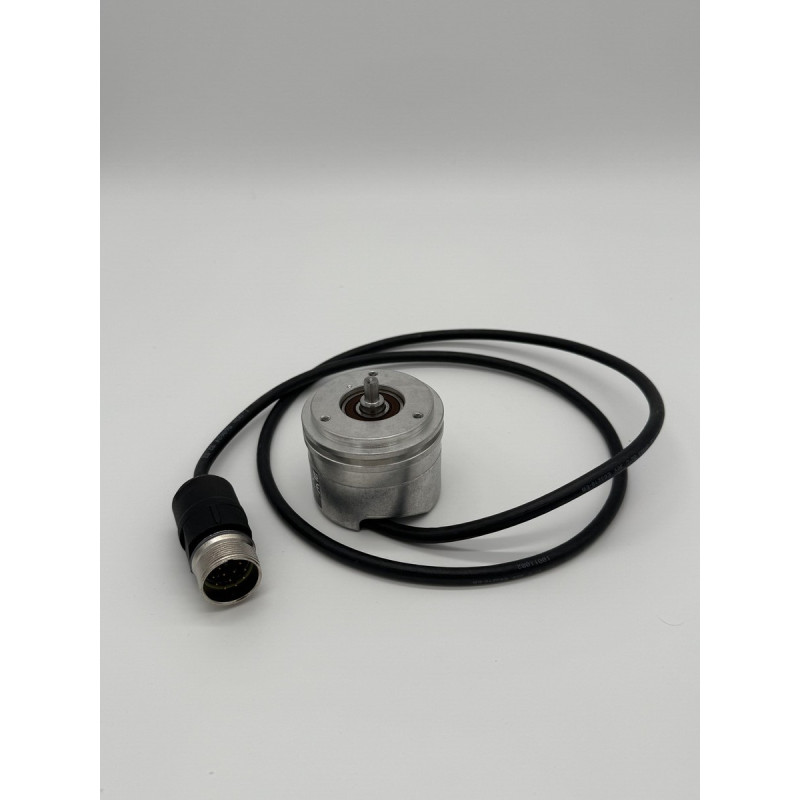

ROD 486 1.024 i/g - Id. Nr. 376886-09

DESCRIZIONE

Incremental rotary encoder with integral bearing
for separate shaft coupling
Line count: 1024
Output signal: ~1Vpp
Cutoff frequency (-3
dB): 180.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm,
centering collar 50 mm,
bolt circle Ø 42 mm, 3 x
M4
Type of Flange: 01C
Shaft: Solid shaft, diameter 6
mm, length 9.5 mm
Type of Shaft: 73A
Protection rating: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Coupling M23, male, 12-pin
Pin configuration: D294999
Connecting direction: Cable outlet for axial and
radial use
Cable length: 1.00 m
Special characteristics,
rotational encoders: none
