HEIDENHAIN

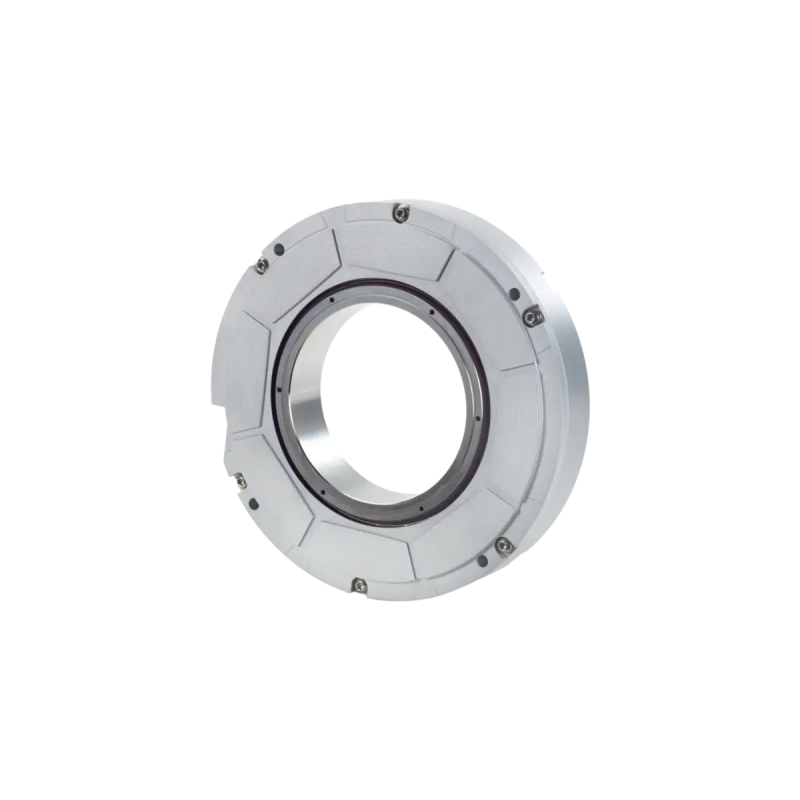

RCN 8381 - Id. Nr. 1244752-01
Nuovo - 36 mesi di garanzia
8.576,00 € +IVA
10.462,72 €
DESCRIZIONE
Absolute angle encoder (singleturn) with integralbearing and integrated stator coupling
System accuracy: ±2.0''
Data interface: EnDat02
Positions per revolution: 536870912
Line count: 32768
Output signal: ~1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V ... 14 V
Shaft: Hollow shaft, diameter
100 mm
Protection rating: IP64 (EN60529)
Operating temperature: 0/+50 °C
Electrical connection: Flange socket
Ultra-Lock, male, 12-pin
Pin configuration: D629024
Consegna espressa
Materiale pronto presso nostro magazzino Firenze. Possibile ritiro in loco
