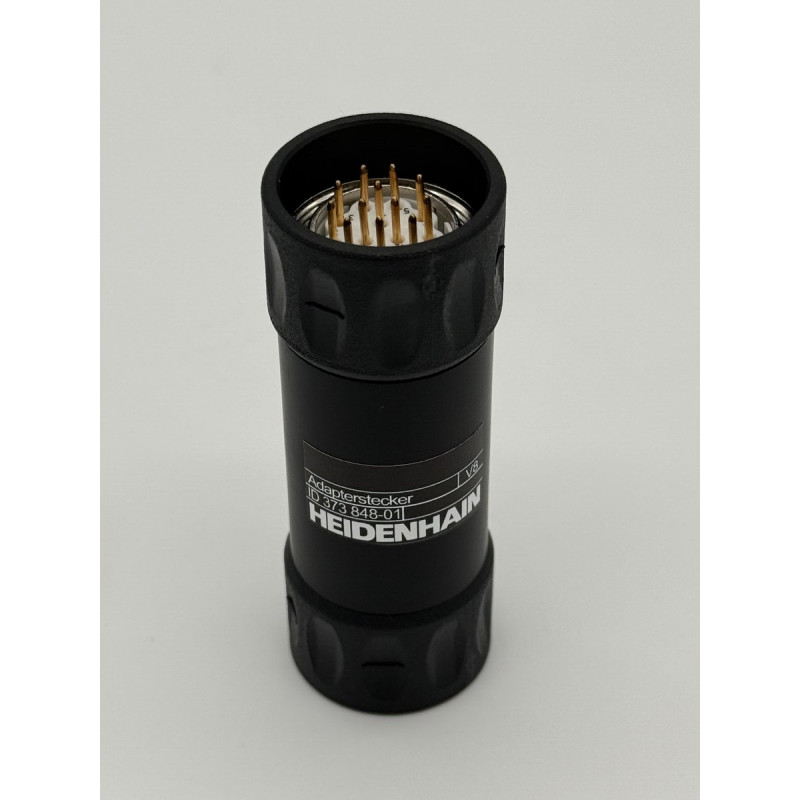

Connetore 12 P - F C/g Ø8mm - Id. Nr. 373848-01

DESCRIZIONE

Adapter connector
metal tube, outside black plastic, both ends with
M23 connector coupling rings
Adapter function: conversion of coupling to
connector
Type of locking Locking device with thread
mechanism: size M23
Encoder side: Connector M23, female,
12-pin
Side of subsequent Connector M23, male,
electronic: 12-pin
Contact surface in
connection area: Gold
Protection rating: IP67 (EN60529)
Maximum operating
temperature: +125 °C
Minimum operating
temperature: -40 °C
