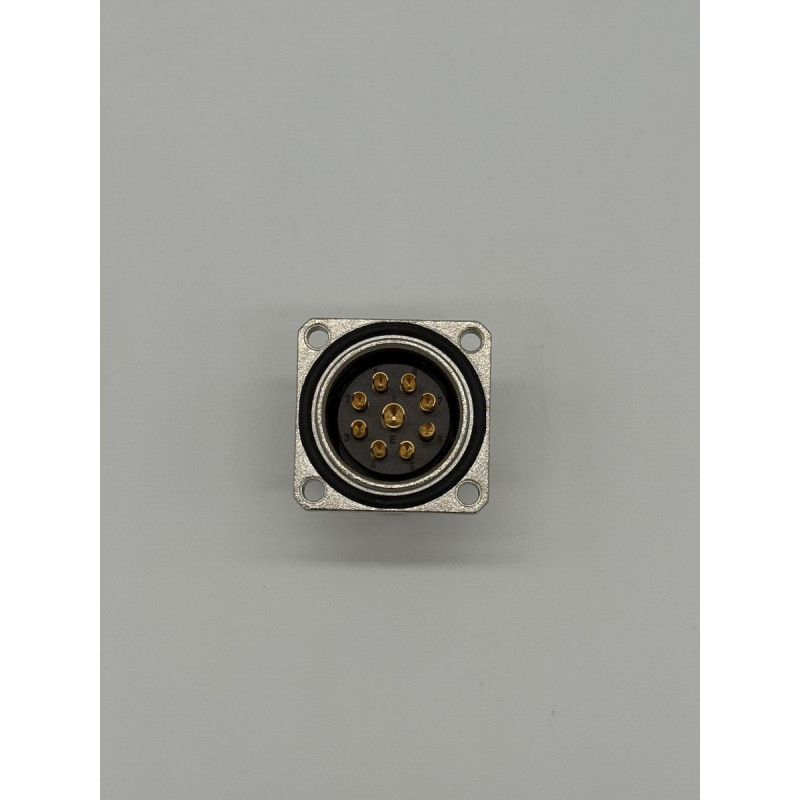

Pannello F. 9 P - Id. Nr. 315892-06

DESCRIZIONE

Flange socket
Cable connector, circular
Electrical connection
geometry: Flange socket M23
Type of contact: Female
Orientation of contact to
connection side: Straight
Number of contacts: 9
Diameter in mm:
Contact surface in
connection area: Au (Gold)
Type of locking mechanism: Locking device with
thread size M23
Cross section: 1.00 qmm
Cross section, US
dimensions: AWG18
Connection type: Connection by soldering
Special characteristics,
connecting element: Pin no. 8+1-pin
