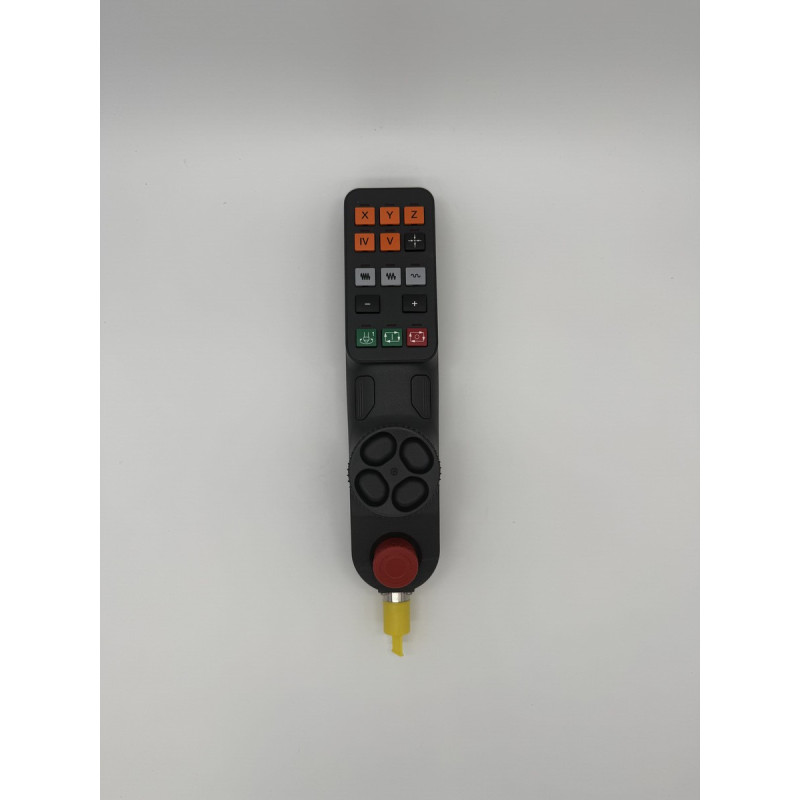

HR 510 - Id. Nr. 1119971-01

DESCRIZIONE

HR 510
Keypad I: X, Y, Z, IV, V, actual
position capture
Keypad II: 3x rapid traverse (slow,
medium, fast)
Keypad III: Minus, Plus
Keypad IV: Spindle start, NC start,
NC stop
Keypad V: no specified value
Clips keys:
Permissive buttons: 2xNO/2xNO
Emergency stop: 1
Number of magnetic
holding pads: 2
Number of status LEDs: 12
Data transfer: Cable
Electrical connection: Flange socket, male,
13-pin, with bayonett
socket
